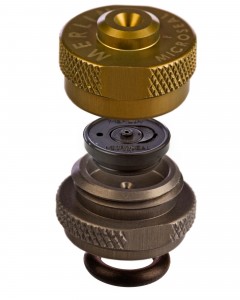

PerkinElmer Injection Ports

The Microseal adapter for the PerkinElmer injection ports mounts directly to the port. The Microseal nut has the correct autosampler alignment detail.

Recommendations for Use:

Tighten the adapter finger tight to compress the O-ring seal.

Tighten the Microseal nut finger tight. Do not overtighten.

Injection port temperature range: 50- 400 C.

Requires a blunt, cone tip, 23 gauge syringe or 23 gauge SPME probes.

Microseal #410 is recommended for most applications (3 – 100 psi).

Use Microseal #310 for lower injection port pressures (1 – 45 psi).

Use Microseal # 21-01 Microseal for SPME.
